MikroTik cAP ac Dual-band 2.4 / 5GHz Wireless Access Point (RBCAPGI-5ACD2ND)
EAN:
2505021811546
Part number:
RBCAPGI-5ACD2ND
₵950.53
net
₵1,074.10
gross
Availability:
8
pcs
1
1
2
3
4
5
6
7
8
Payment methods
Delivery methods
> 2.4 GHz 300 Mbit/s
> 5 GHz 867 Mbit/s
> Maximum data transfer rate: 867 Mbit/s
> IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
> Power over Ethernet (PoE)
> Antennas quantity: 4 Internal Integrated antenna
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description

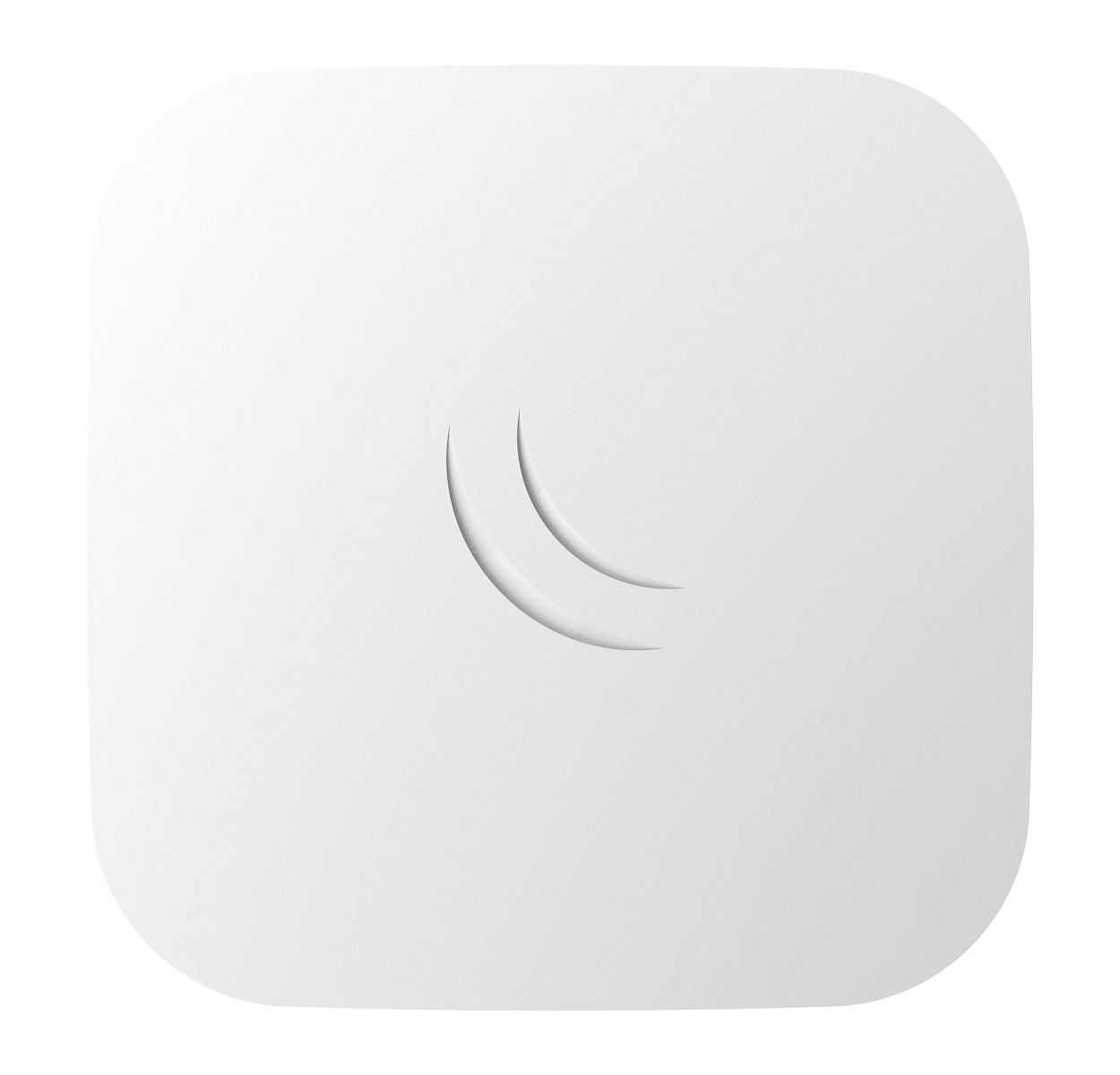

MikroTik cAP ac Dual-band 2.4 / 5GHz Wireless Access Point
Capable and Powerful Wireless Access Point

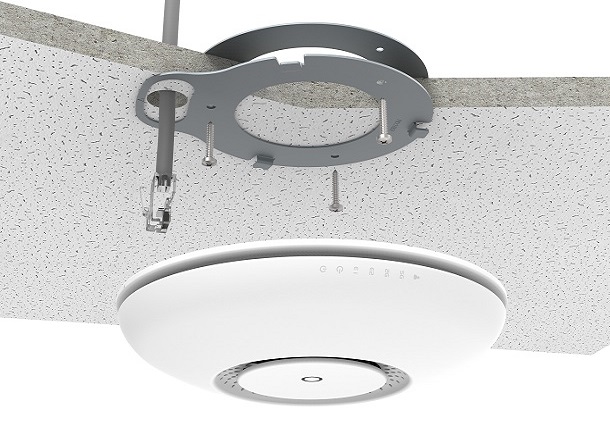

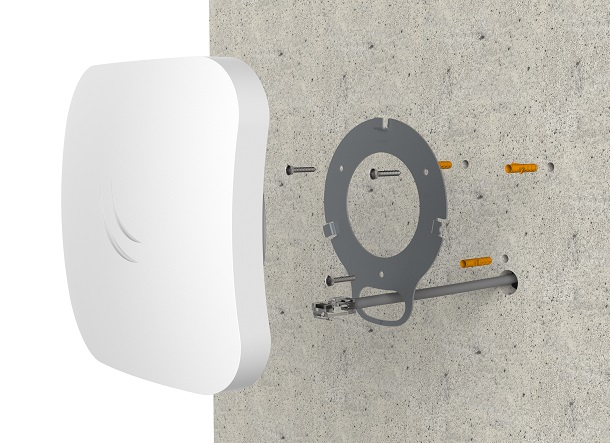

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
Wireless capabilities
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2
- Wireless 2.4 GHz chip model: IPQ-4018
- Wireless 2.4 GHz generation: Wi-Fi 4
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 2.5
- Wireless 5 GHz chip model: IPQ-4018
- Wireless 5 GHz generation: Wi-Fi 5
- AC speed: AC1200
Ethernet
- 10/100/1000 Ethernet ports: 2
Powering
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 24 W
- Max power consumption without attachments: 13 W
- FAN count: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 17-57 V
PoE-out
- PoE-out ports: Ether2
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 500 mA
- Max out per port output (input 30-57 V): 400 mA
- Max total out (A): 500 mA
Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
Other
- Mode button: Yes
Multimedia
Specifications
Features
2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.412 - 2.484, 5.15 - 5.875 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Receiver sensitivity
2.4GHz:
1MBit/s: -100 @ 26dBm Tx
11MBit/s: -94 @ 26dBm Tx
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -78 @ 23dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -73 @ 22dBm Tx
5GHz:
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -80 @ 21dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -75 @ 20dBm Tx
MCS9: -70 @ 18dBm Tx
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
Power over Ethernet (PoE)
Yes
DC voltage range
17 - 57 V
Output voltage
57 V
Power consumption (max)
13 W
Design
Placement
Ceiling, Wall
Product color
White
LED indicators
Yes
Internal
No
Antenna
Antenna type
Internal
Antenna features
Integrated antenna
Antennas quantity
4
Antenna gain level (max)
2.5 dBi
Performance
Built-in processor
Yes
Processor model
IPQ4018
Processor frequency
716 MHz
Flash memory
16 MB
Internal memory
128 MB
Operating system installed
RouterOS
Certificates
Certification
CE, FCC, IC, EAC, ROHS
Weight & dimensions
Width
5.35" (136 mm)
Depth
1.18" (30 mm)
Height
5.35" (136 mm)
Packaging content
AC adapter included
Yes
PoE adapter included
Yes
Mounting kit
Yes
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Logistics data
Harmonized System (HS) code
85176990
